Drilling And Tapping Multi Spindle Drilling Machine PLC

Drilling and tapping integrated machine

The integrated drilling and tapping machine can complete the simultaneous processing of multiple threaded holes on the same plane, with high processing efficiency, reduced labor, high uniformity of processing dimensions and easy operation.
Main features
1. High processing efficiency: During the processing, the drilling and tapping machine uses the No. 1 power head to feed longitudinally to complete the drilling process of the thread bottom hole; the workpiece is moved from the horizontal workbench to the workstation, and the No. 2 power head feeds longitudinally to complete the thread tapping process. The time required is 1-2 minutes.
2. Reduce labor: Traditional tapping requires two processes, namely drilling the thread bottom hole and tapping, and it is necessary to use the mold to process one hole at a time, which wastes time and manpower. The drilling and tapping machine can complete the drilling and tapping of multiple holes in one clamping. The work efficiency is very high.
3. High uniformity of processing size: After one adjustment is completed, you only need to clamp the workpiece to cycle the drilling and tapping work.
4. Easy to operate: This machine tool is easy to operate and anyone with or without experience can learn it.
Main components
The main engine of the valve CNC machine tool is the main body of the valve CNC lathe, including the machine body, column, spindle, feed mechanism and other mechanical parts. It is a mechanical part used to complete various cutting processes. The CNC device is the core of the valve CNC machine tool, which is used to input digital part programs, store input information, transform data, interpolate operations, and realize various control functions.
Application
The drilling and tapping machine is suitable for various valves and pipe fittings: the drilling and tapping machine uses a cross coupling to drive the spline shaft, the drill rod position can be adjusted arbitrarily, and the drilling and tapping machine can process products with multiple threaded holes on the same plane, such as the valve center.

Specifitions

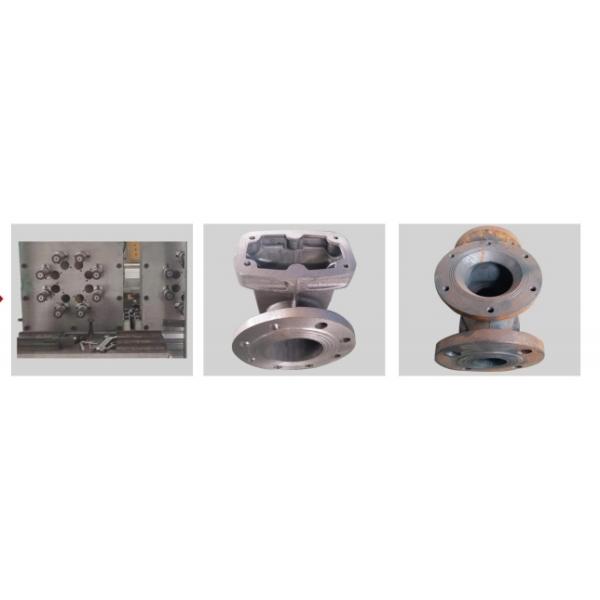

Processed products
