Single Sided Multifunction CNC Boring Machine Efficiency Cnc Milling Turning

Brand Name : Vicord

Model Number : YCIC300HT-GLQ

Certification : CE

Place of Origin : China

Payment Terms : L/C,T/T

Supply Ability : 500 units/year

Delivery Time : 60 days

Packaging Details : Wrap plastic film

Coaxiality : ≤0.15mm

Spindle motor model : YE2-132M-6-5.5KW

X-axis travel(mm) : 180

Z-axis travel(mm) : 520

Contact Now

Efficiency Single-Sided Multifunction CNC Boring Machine

Application

The machine tool is suitable for processing various valve bodies: The machine tool can process the outer circle of the valve body, the key end faces of the valve body, the inner hole, and the plane. The machine tool can process any valve body, where the three flange surfaces of this valve body can form a 90-degree angle, or it can process two flange surfaces that are on the same straight line.

Advantages

High processing efficiency: The machine tool can complete the processing of flange faces, end faces, and water lines within 1-3 minutes. The short processing time is due to the machine tool's use of a power head working simultaneously.

Reduce manual labor: one person can operate two lathes simultaneously or operate one lathe and one drilling machine at the same time.

Easy to operate: The machine tool is controlled by a numerical control system, and those with experience in numerical control operation can learn it in one go.

Details

Project Machine tool specification YCIC300HT YCIC300HT-GLQ YCIC600HT
Technical
specifications		 Maximum turning length(mm) φ480 φ480 φ850
X-axis travel(mm) 180 180 280
Z-axis travel(mm) 400 520 530
Machining precision Coaxiality(mm) ≤0.15 ≤0.15 ≤0.2
Parallelism(mm) ≤0.1 ≤0.1 ≤0.15
Surface roughness 6.3 6.3 6.3
Spondle drive Transmission from (Gearshifting) Fourth speed change Fourth speed change Second speed change
Spindle motor range(r/min) 72-256 72-256 32-47
Spindle motor model YE2-132M-6-5.5KW YE2-132M-6-5.5KW YE2-160L-8-7.5KW
Numerical control system(optional) Nanjing Huaxing--Step System Nanjing Huaxing--Servo System
GuangZhou cnc--Stepping GuangZhou cnc--Servo System
Feed form(optional) Stepmptor 24 N.m 24 N.m 35 N.m
Actuating motor 7.7 N.m 7.7 N.m 10 N.m
Machine Appearance Full protection Overall dimension of machine tool
(length x width x height) (mm)		 2300 x 1900 x 1700 2500 x 1900 x 1700 3000 x 2300 x 2500
Simple protection Overall dimension of machine tool
(length x width x height) (mm)		 2100 x 1900 x 1700 2300 x 1900 x 1700 2700 x 1800 x 2300
Machine tool weight(kg) 1800 2000 4500

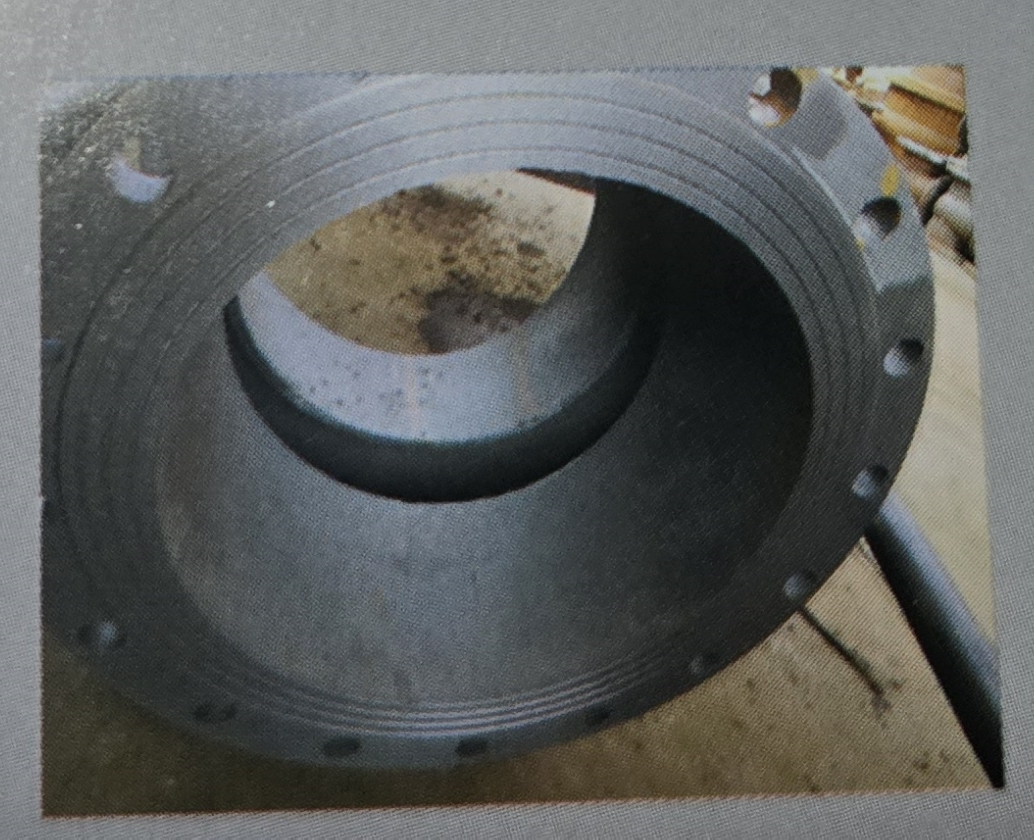

Process Product

Single Sided Multifunction CNC Boring Machine Efficiency Cnc Milling TurningSingle Sided Multifunction CNC Boring Machine Efficiency Cnc Milling TurningSingle Sided Multifunction CNC Boring Machine Efficiency Cnc Milling Turning
